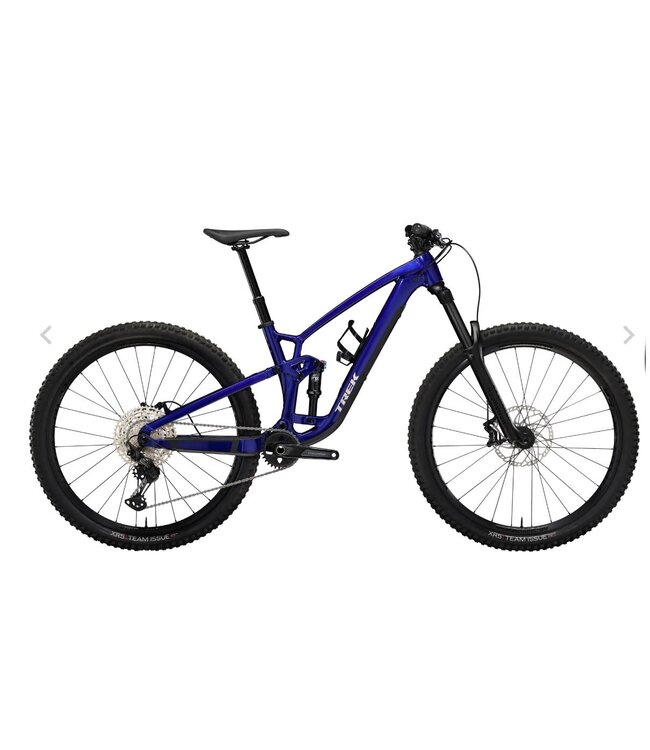

The Fuel EX 7 is a do-anything trail machine evolved to eat up singletrack. Upgraded 150 mm front and 140 mm rear suspension smooth out rough and technical descents, while a lightweight aluminium frame keeps things lively on the climbs. New in-frame storage and adjustable geometry give you all the perks that come with the carbon model, without the price tag. Tubeless wheels, and reliable Shimano SLX 1x12 drivetrain round-out this build for ultimate trail fun.
| Frame | Alpha Platinum Aluminium, internal storage, angle-adjust headset, Mino Link adjustable geometry, adjustable leverage rate, guided internal routing, magnesium rocker link, 34.9 mm seat tube, ISCG 05, 55 mm chain line, BSA 73, downtube guard, shuttle guard, ABP, UDH, Boost148, 140 mm travel |
|---|---|
| Fork | RockShox 35 Gold RL, DebonAir spring, Motion Control damper, lockout, tapered steerer, 44 mm offset, Boost110, 15 mm Maxle Stealth, 150 mm travel |
| Shock | Fox Performance Float EVOL, 3-position DPS damper, tuned by Trek Suspension Lab, 185 mm x 55 mm |
| Max compatible fork travel | 160mm |
| *Wheel front | Size: XS , S Bontrager Line Comp 30, Tubeless Ready, 6-bolt, Boost110, 15 mm thru axle, 27.5" |
|---|---|
| Size: S , M , ML , L , XL , XXL Bontrager Line Comp 30, Tubeless Ready, 6-bolt, Boost110, 15 mm thru axle, 29" |
|
| *Wheel rear | Size: XS , S Bontrager Line Comp 30, Tubeless Ready, Rapid Drive 54, 6-bolt, Boost148, 12 mm thru axle, 27.5" |
| Size: S , M , ML , L , XL , XXL Bontrager Line Comp 30, Tubeless Ready, Rapid Drive 108, 6-bolt, Boost148, 12 mm thru axle, 29" |
|
| Skewer rear | Bontrager Switch thru-axle, removable lever |
| *Tyre | Size: XS , S Bontrager XR5 Team Issue, Tubeless Ready, Inner Strength casing, aramid bead, 60 tpi, 27.5 x 2.50" |
| Size: S , M , ML , L , XL , XXL Bontrager XR5 Team Issue, Tubeless Ready, Inner Strength casing, aramid bead, 60 tpi, 29x2.50" |
|
| Tyre part | Bontrager TLR sealant, 180 ml/6 oz |
| Rim strip | Bontrager TLR |
| Max tyre size | Frame: 29x2.50" (XS & S: 27.5x2.50"), Fork: See manufacturer |
| Shifter | Shimano SLX M7100, 12-speed |
|---|---|
| Rear derailleur | Shimano XT M8100, long cage |
| Crank | Shimano Deore M6120, 30T ring, 55 mm chainline, 170 mm length |
| Bottom bracket | Shimano BB-MT501 BSA |
| Cassette | Shimano Deore M6100, 10-51, 12-speed |
| Chain | Shimano Deore M6100, 12-speed |
| Max. chainring size | 1x: 34T round, 32T oval, min 28T |
| Saddle | Bontrager Arvada, steel rails, 138 mm width |
|---|---|
| *Seatpost | Size: XS , S TranzX JD-YSI-22PLQ, 100 mm travel, internal routing, 34.9 mm, 346 mm length |
| Size: M , ML TranzX JD-YSI-22PLQ, 150 mm travel, internal routing, 34.9 mm, 454 mm length |
|
| Size: L , XL , XXL TranzX JD-YSI-22PLQ, 170 mm travel, internal routing, 34.9 mm, 497 mm length |
|
| Handlebar | Bontrager Rhythm Comp, alloy, 31.8 mm, 15 mm rise, 750mm width |
| Grips | Bontrager XR Trail Comp, nylon lock-on |
| *Stem | Size: XS , S Bontrager alloy, 31.8 mm, Blendr-compatible, 7-degree, 35 mm length |
| Size: M , ML , L , XL , XXL Bontrager alloy, 31.8 mm, Blendr-compatible, 7-degree, 50 mm length |
|
| Head set | Integrated cartridge bearing, 1-1/8" top, 1.5" bottom, angle adjust cup compatible |
| *Brake | Size: XS , S , M , ML , L , XL , XXL Shimano 4-piston hydraulic disc, MT4100 lever, MT420 calliper |
| Size: XS , S , M , ML , L , XL , XXL Shimano hydraulic disc, MT4100 lever, MT420 4-piston calliper |
|
| *Brake rotor | Size: XS , S , M , ML , L , XL , XXL Shimano RT66, 6-bolt, 180 mm |
| Size: XS , S , M , ML , L , XL , XXL Shimano RT66, 6-bolt, 203 mm |
|
| Rotor size | Max brake rotor sizes - Frame: 203mm, Fork: see fork manufacturer |
| Weight | M – 15.97 kg/35.21 lb (with TLR sealant, no tubes) |
|---|---|
| Weight limit | This bike has a maximum total weight limit (combined weight of bicycle, rider and cargo) of 136 kg (300 lb). |
