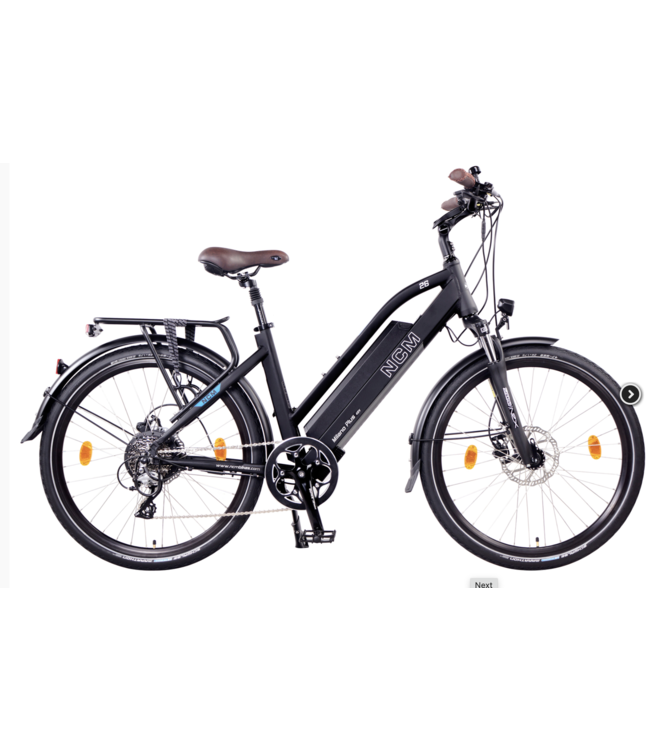

NCM Milano Plus 26" / 28"

The NCM Milano Plus is a true trekking hybrid E-bicycle and a perfect all-around lifestyle bike; the NCM Milano Plus is all that and more. Take it to the shops and feel comfortable with all your purchases secured on the rear rack; its design allows you to wear formal clothing and ride it to work with no discomfort and without breaking a sweat; or you can ride it across town and visit your friends. It´s casual style encourages the same from you, with no need for professional Tour de France equipment. If you want to escape the city for the weekend, this E-bike is perfectly suited for short and long trips with its now even longer-lasting battery on the NCM Milano Plus (perfect for charging all your other portable devices with its USB port), a powerful motor, and high level of comfort.

Adjustable handlebar & strong DeHawk battery

Ergonomic bicycle Grips
Confortable sitting posture
Easy handling of the components
Adjustable handlebar for a good driving position
All important controls easily accessible
supplied with 48V to deliver a high output power
over 750Wh capacity for a longer distance
reach up to 150km (depending on the conditions)
battery integrated in the frame for better aesthetics
easily removable battery so you can charge it anywhere
A built-in USB port with 5V to charge mobile phones

Safe braking performance

Front Brake:

Reliable hydraulic disc brake system. The 180 mm brake disc ensures powerful and safe braking at all speeds.

Rear Brake:

Reliable hydraulic disc brake system from Tektro. The 160 mm brake disc ensures powerful and safe braking at all speeds.

Das-Kit System

Das-Kit system with a high-contrast LCD display provides all important information at a glance and can also

be read easily in direct sunlight. The LCD display gives good feedback, is extremely robust and easy to use.
The additional power can be individually controlled via six support levels.
It is protected against dirt and splash water.

The rear engine delivers a full torque up to 55 Nm with 250W rated power and 48V voltage.

A large display shows all necessary settings.

6 support levels and a pushing aid of up to 6 km/h are adjustable.

The display's control buttons are deliberately placed on the left side - close to the left hand - so the driver can easily switch between support levels or displays without having to lift his hand off the handlebars.

NCM Milano Plus 48V 13Ah Details

General Information

Weight: 26”= 27kg/ 28”= 27kg
Type: E-Trekkingbike
Wheel size: 26” / 28"
Load capacity: Max. 125kg
Maximum speed: 25km/h

Electric parts

Motor: Das-Kit, X15 Rear-drive motor, 48V 250W, 25km/h
Controller: Das-Kit, CT5-I5, 48V 15A
Charger: 48V 3A included (round plug) DC483DE
Battery: DEHAWK I5-4816H,48V 16AH, 768WH, with USB port
Average range: 70-150km depending on assistance level
Display: LCD Das-Kit C7 display with many functions, 6km/h walk assist
Front/Rear Light: Spanninga, Kendo, 48V, 30 Lux Spanninga, Solo 2xAA

Bike parts

Frame: Alu. 6061, 26"*457MM /28"*480MM
Handelbar: Promax MA579 adjustable
Fork: Suntour, NEX 26” / 28”
Brake Levers: Tektro, with brake sensors on both sides
Brakes F/R: Tektro hydraulic Disc Brakes
Chain derailleur: Shimano, Altus M310, 8 speed
Crank set: Prowheel, OUNCE-248AC, 48T
Gear shift: Shimano, Acera M360, 8 speed
Pinion: 8-speed screw ring, 11-32T
Tyre: Schwalbe Marathon 26"*1.75 / 28"*1.5 700C black
Saddle: Selle Royal, gel saddle, brown (imitation leather)
Seatpost: Promax, SP-884, with suspension, 27.2*300MM
Handles: Selle Royal, brown (imitation leather)
Pedals: Wellgo, B087, black

Warranty

1 year warranty on all electronic parts (including battery, motor, controller, display, lights)
2 year warranty on the bike frame
Apart from manufacture defects that could be present, parts that wear due to normal use (such as tyres, brake pads, chains, etc) are not included in the warranty but maybe replaced on a case by case basis within the first 6 months.
