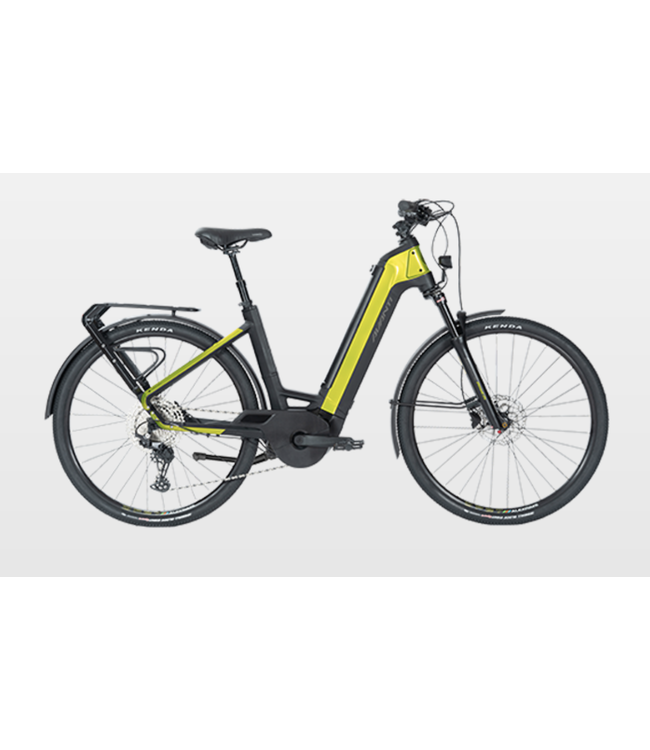

Key features of the Metro-E City SUV E-Bike

• Bosch's Gen 4 Performance Line CX motor for smooth power assisted riding up to 32kph for NZ or 25kph for AU
• Bosch full internal 625Wh Powertube battery is light, smoothly integrated into the frame and provides huge range for all-day adventures
• German-engineered super-low step frame, combined with a dropper post make getting on and off, a breeze
• Wide alloy rims are shod with fast-rolling MTB tyres for the ultimate grip and confidence on the rail trail
• Full alloy Hebie fenders with a custom, integrated Racktime rear rack that is compatible with Racktime's Snapit 2 mount system

-Drive System Bosch G4 Performance Line CX
Drive Unit Bosch G4 Performance Line CX, 85Nm, 250W, 32kph for NZ, 25kph for AU
Battery Bosch Powertube 625Wh Internal
Display Bosch Purion
Charger Bosch Std 4A Charger
Category E-Bike
Family Urban
Model Metro-E City SUV E-Bike
Sizes S/M, M/L
Colour Green
Frame AL-6061 Ultra Light butted, super-low-step frame
Fork Suntour Mobie 25, RLR DS, Tapered Steerer, Remote Lockout, 100 mm, 15x100 mm axle
Rear Derailleur Shimano Deore 11sp Shadow Plus
Shifters Shimano Deore 11sp
Crankset Shimano MT200 Hydraulic Disc, 180 front/160 rear Centrelock Rotors
Motor Bosch G4 Performance Line CX
Brakes Shimano MT201 Hydraulic Disc, 180 front/160mm rear Centrelock Rotors
Brake Levers Shimano MT200 hydraulic
Wheelset / Rims Alex DP 27 Double-wall Alloy 32H
Hubs Front: Shimano MT400 100x15 32H, Rear: Shimano M3050 Centrelock Cassette 32H
Spokes Sapim Stainless Steel
Cassette Shimano Deore Cassette, 11-speed 11-51T
Handlebar Alloy riser bar, 15 deg sweep
Handlebar Stem Alloy Ahead adjustable rise
Headset Acros, A-Headset, integrated, 1.5", with integrated cable routing
Grips Dual density Ergo
Pedals VP retro with alloy body and rubber gripper
Tyres Kenda Small Block 8 29 x 2.1 with K Shield, reflective logos & AV tube
Saddle Selle Royal Lookin comfort with RoyalGel padding
Seat Post Syncros Duncan Dropper 31.6mm with internal cable routing
Chain KMC E11 E-bike chain
EXTRAS Rack, Fender, Kickstand, lights
Geometry
S/M M/L
1 Seat Tube Length (C-Top) 460 500
2 Horizontal Top Tube Length 595 605
3 Standover Height 450 450
4 Head Tube Length 160 180
5 Head Angle 69.5 69.5
6 Seat Angle 72.5 72.5
7 BB Drop 70 70
8 Chainstay Length 499 499
9 Wheelbase 1145 1155
10 Reach 395 399
11 Stack 634 654
The following are not displayed.
Stem Length 75 75
Crank Length 165 165
Wheel Diameter 700c 700c
